| Vehicle technical parameters | |||
|---|---|---|---|
|
Product Trademark |
Chengli brand |
Announcement batch |
379 (Extended) |
|
Product Name |
oil tanker |
Product Model |
CL5097GYYZ6 |
|
Total mass (kg) |
9100 |
Tank volume (m3) |
6.2 |
|
Rated load capacity (Kg) |
4970, 4905 |
External dimensions (mm) |
5945,5965×2100×2650 |
|
Curb weight (kg) |
4000 |
Cargo box dimensions (mm) |
×× |
|
Rated passenger capacity (persons) |
|
Permitted gross vehicle weight (kg) |
|
|
Number of passengers allowed in the driver's cab (persons) |
2,3 |
Maximum load capacity of the saddle (Kg) |
|
|
Approach angle/departure angle (°) |
18/16 |
Front overhang/rear overhang (mm) |
1160/1505, 1180/1485, 1160/1525, 1180/1505 |
|
Axle load (Kg) |
3300/5800 |
Maximum speed (km/h) |
80 |
| Molding technical parameters | |||
|---|---|---|---|
|
External model |
ZZ1097H3815F191Z |
Structure name |
Cargo truck structure |
|
Trademark Name |
Howo brand |
manufacturing enterprises |
China National Heavy Duty Truck Group Jinan Automobile Co., Ltd. |
|
Number of axes |
2 |
Number of tires |
6 |
|
Wheelbase (mm) |
3280, 3360, 3600, 3800 |
||
|
Tire specifications |
7.50R16LT 16PR, 8.25R16LT 18PR, 215/75R17.5 16PR, 205/75R17.5 16PR |
||
|
Number of leaf springs |
3/3+2, 2/2+1, 2/2+2, 2/3 + 2, 1/1 + 1, 11/9 + 7 |
Front track width (mm) |
1610, 1776, 1796, 1815 |
|
Fuel types |
nickel |
Rear track width (mm) |
1555, 1595, 1645, 1695, 1795 |
|
Emission standards |
GB17691-2018 Country VI |
||
| Main vehicle configuration | |||
|---|---|---|---|

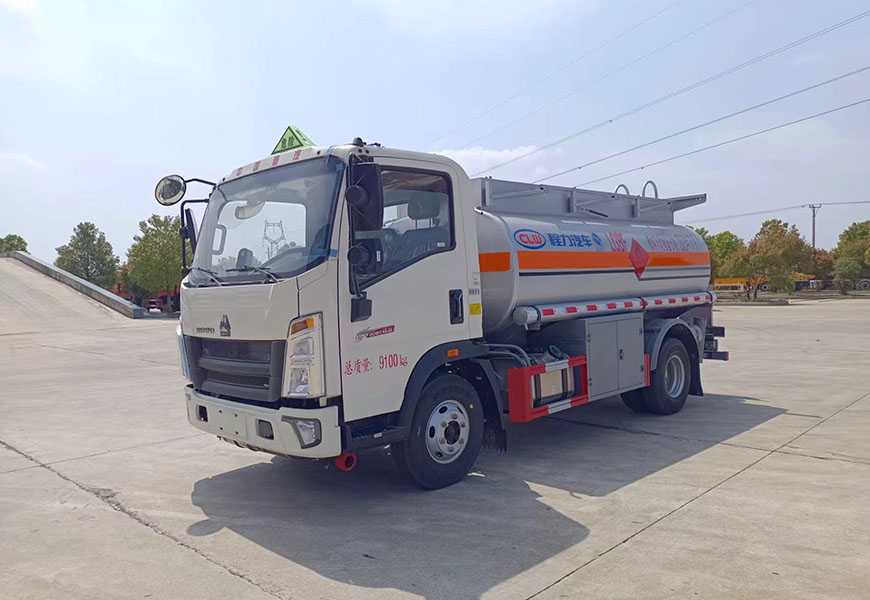

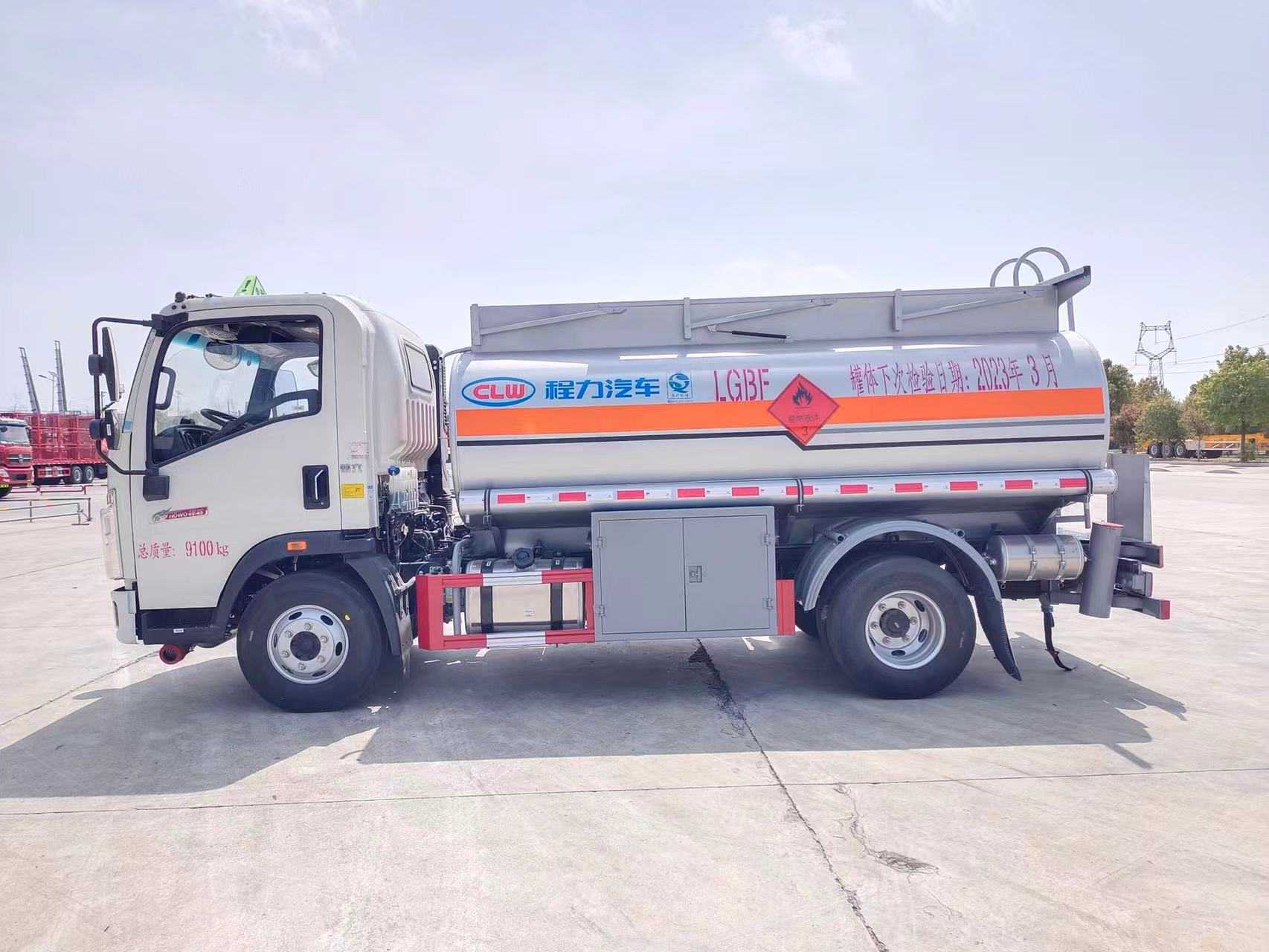

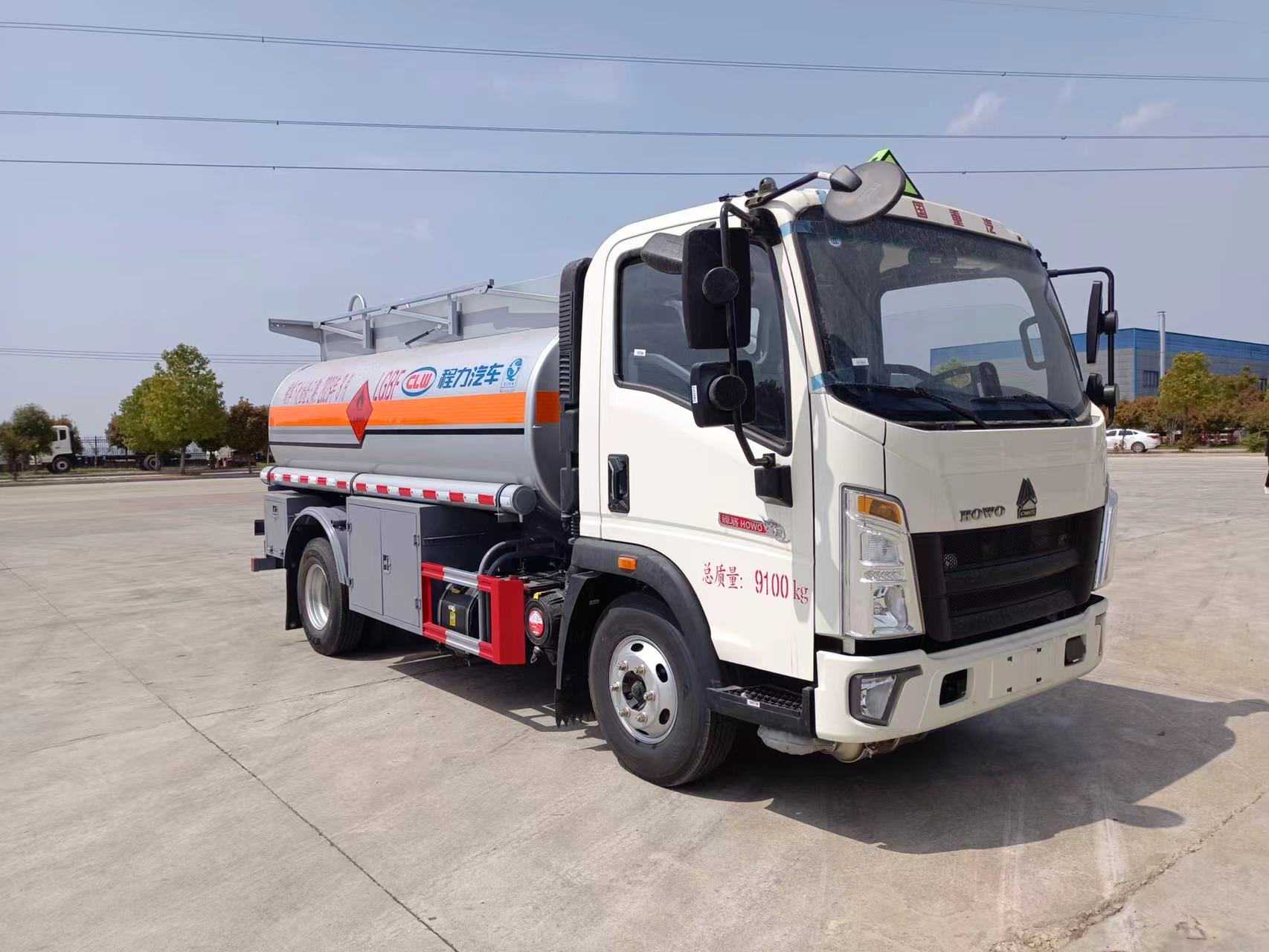

| Exterior Configuration | The Howo 5-ton fuel truck has a gross vehicle weight of 9.1 tons and a tank volume of 6.2 cubic meters, which is within the legal limit for 5 tons of fuel. It features a Weichai 4-valve 130hp WP2.3NQ130E61 engine with strong power; a Wanliyang 6-speed WLY6G40 transmission; a 2.0T disc axle at the front and a 3.5T drum axle at the rear (4.875mm); 7.50R16 steel radial tires; air conditioning; power windows and doors with remote control; front disc brakes; front-mounted exhaust pipe; speed limit 80km/h; LDWS+FCWS; 1880mm wide single-row body with thick leather seats; color screen instrument panel; electric horn; multi-function steering wheel with cruise control; vehicle model 17D; 11/9+7H leaf springs; 120-liter aluminum alloy fuel tank; fully compliant with regulations, fuel standards, and environmental regulations… | ||

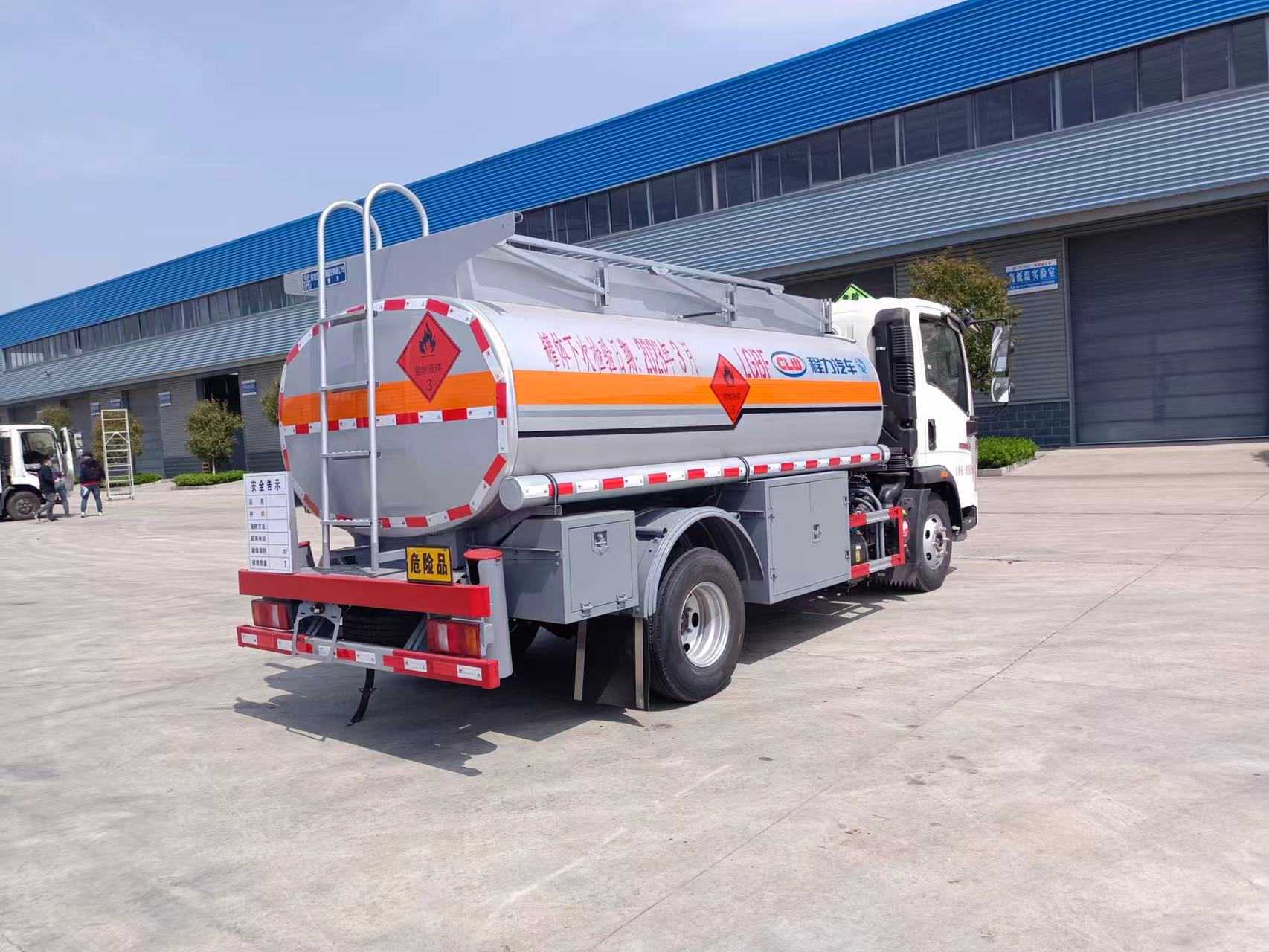

| Upper body configuration | Tank Configuration: Upper Structure: 6.2 cubic meter capacity (as announced); Transport Medium: Diesel, Gasoline; Tank Material Thickness: Same as design; Single Compartment with Overflow Valve; 60-30 Pump; Pump-in/Pump-out in the Driver's Cab; European Standard (one European standard tank opening, one bottom valve, one overflow prevention probe and socket, one outlet recovery valve, one bottom loading valve); Bottom valve equipped with one fireproof cap; Two equal-length oil pipes with male and female terminals; Two fire extinguishers; Two plugs; Rear Ladder; One Toolbox; Safety Warning Signs; Standard Configuration. Paint: Silver Pink; Reflective Strips; Reflective Tape; Reflective Material; Three "Flammable Liquids" Markings; Strictly in accordance with manufacturing standards. | ||
